Balcony bracket for solar panels, square handrail
Specifications
Information
- Balcony bracket for mounting a solar module
- Tilt angle individually adjustable without tools
- Slim anodised aluminium profiles
- Weatherproof and lightweight
- Mounting material for the solar module included

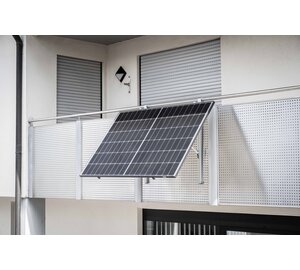

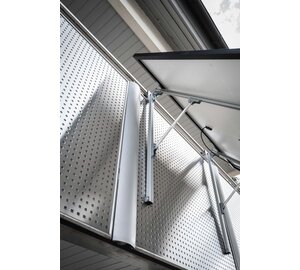

Maximum energy yield through tool-free adjustable tilt angle! The MUNK Profiltechnik balcony brackets for solar panels, made from anodised aluminium profiles, enable quick and secure installation of PV modules on balconies, railings, and fences – suitable for round and square handrails, with individually adjustable tilt angle for optimal sun orientation.
Universal Mounting for All Railing Types
- Two variants available: For round handrails up to 50 mm Ø and square handrails up to 80×60 mm
- Tool-free tilt adjustment: Customisable angle for maximum energy yield depending on season and location
- Module support: Suitable for panels up to 210 cm in length and 120 cm in width – compatible with standard balcony solar modules
High-Quality Aluminium Construction
Anodised profiles: Bright E6/EV4 anodised 30×30 mm aluminium profiles for long-lasting weather resistance and corrosion-free operation. Lightweight design: Just 3 kg per bracket set for easy installation without reinforcing the railing.
Complete Set for Immediate Installation
All-inclusive package: 2 balcony brackets plus complete mounting hardware for the solar module – no additional parts required. Quick assembly: Pre-assembled kits allow tool-free installation in just minutes.
Optimal Energy Output Through Seasonal Flexibility
The tool-free adjustable tilt angle allows for seasonal optimisation: Flatter in summer for peak midday sun, steeper in winter to capture low-angle sunlight more effectively.
Typical Applications
- Balcony solar systems: Private solar power generation on apartment balconies using railing mounting
- Garden fences: Mobile PV modules on sturdy fence posts and enclosures
- Small-scale systems: Flexible PV installation for garden sheds and workshops
- Rental flats: Removable solar solutions without structural modifications
Discover the MUNK balcony brackets for solar panels – the flexible solution for maximum energy yield, installed today and optimally aligned tomorrow.
- Balcony bracket for mounting a solar module
- Tilt angle individually adjustable without tools
- Slim anodised aluminium profiles
- Weatherproof and lightweight
- Mounting material for the solar module included

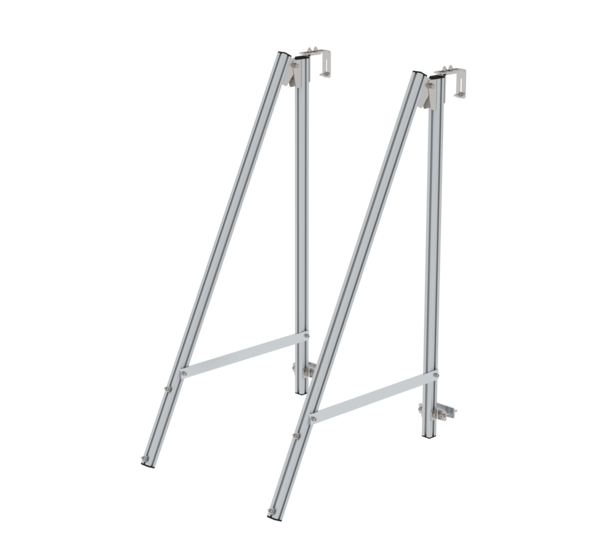

- Balcony bracket for square railing: 2 x
- Mounting material for solar module: 2 x
Comparison table
| Product name | Balcony bracket for solar panels, round handrail | Balcony bracket for solar panels, square handrail |
|---|---|---|
| Product type | ||
| Material | Aluminium | Aluminium |
| Surface texture | Aluminium eloxiert | Aluminium eloxiert |
| Anodising | Hell E6/EV4 | Hell E6/EV4 |
| Profile dimension X | 30 mm | 30 mm |
| Profile dimension Y | 30 mm | 30 mm |
| Module length | max. 210 cm | max. 210 cm |
| Module width | max. 120 cm | max. 120 cm |
| Handrail (balcony railing) | rund, max. 50 mm Ø | eckig, max. 80 x 60 mm |
| Order no. | 930710 | 930711 |
