Order no.: 041416

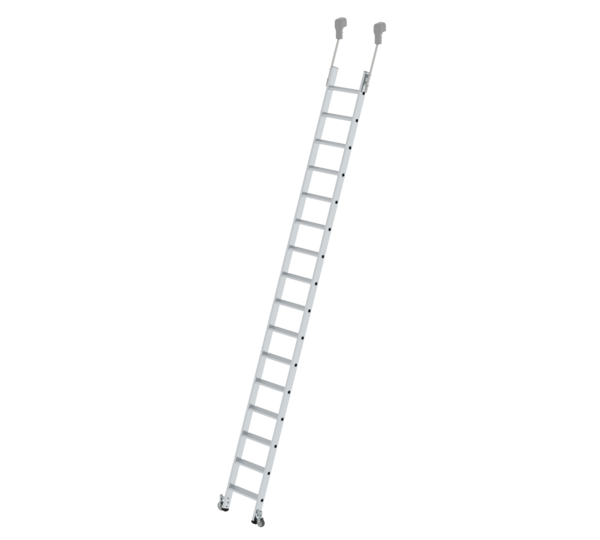

Step shelf ladder, mobile

Name: Step shelf ladder, mobile
Brand: MUNK Günzburger Steigtechnik
SKU: 54985
Price: 912.00 EUR
Availability: InStock

€ 912.00

RRP without VAT

Ready for dispatch in 1 to 3 days

Number of steps

Select & request quote

Please log in

Download data sheet

Download accessories list

Download spare parts list

Assembly and operating instruction shelf ladder [2.68 MB] DE, EN

Specifications

Working height

5.3 m

Step design

Steps

Number of steps/rungs

16 steps

Step width

370 mm

Step depth

80 mm

Step/Rung distance

235 mm

Vertical hook-in height

4.27 m

Ladder length

4.19 m

Base area

1.63 m

Inclination

70 °

Outer width

420 mm

Castor diameter

80 mm

Max. load capacity

150 kg

Design type

Mobile | With castors

Transport dimensions (plus packaging)

4360 x 600 x 110 mm, 14.72 kg

Business division

MUNK Günzburger Steigtechnik

Order no.

041416

Information

Step shelf ladder made of aluminium
Stable rectangular tube side-rails
80 mm deep, ribbed steps R10
4-fold edged step-to-side-rail connection
Easy to move thanks to smooth-running undercarriage at the upper end
Compact to store when not in use
Self-locking spring-loaded castors, Ø 80 mm, at the lower end

Non-slip ladder shoes
Step spacing: 235 mm
Ladder width: 420 mm (without castors)
Ladder width with castors: 600 mm
Ladder inclination: 70°
Maximum load: 150 kg
Please note: Shelf ladders are available in the standard lengths listed, as well as made to measure. To order a made-to-measure ladder, please specify the exact vertical mounting height – the price will be calculated based on the next size up, plus a flat-rate modification fee. Made-to-measure shelf ladders cannot be exchanged.

Scope of supply

Instructions for use and operation: 1 x
Spring-loaded castor: 2 x
Ladder: 1 x

Best Brand of the Year 2025 – Plus X Award

MUNK is the only company in the access equipment industry to receive this award.
The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.

Safety. Made in Germany.

Comparison table

Product name	Step shelf ladder, mobile 6 steps	Step shelf ladder, mobile 8 steps	Step shelf ladder, mobile 10 steps	Step shelf ladder, mobile 12 steps	Step shelf ladder, mobile 14 steps	Step shelf ladder, mobile 16 steps	Step shelf ladder, mobile 18 steps
Working height Understanding Working Height: Key Metrics, Standards, Safe Selection Whether you're using a step stool, platform, ladder or mobile scaffold tower – every piece of access equipment has a working height. Understand this metric and you'll choose the right product. Ignore it and you'll work too low, unsafely, or with unnecessary strain. Standing height (S) is the distance from the ground to your standing surface – the rung, platform or podest you stand on. Working height (A) describes how high you can work comfortably and sustainably with your arm slightly raised. Not your maximum reach – the height at which you work without fatigue. Rule of thumb: Standing height (S) + 2 m ≈ working height (A) Some manufacturers use the term "reach height" instead of "working height". Both mean the same thing – arm slightly raised, relaxed posture. Measure the height you need to reach first. Then choose your equipment. Our product filter helps you do exactly that – filter directly by working height, compare, decide.	2.8 m	3.3 m	3.8 m	4.3 m	4.8 m	5.3 m	5.8 m
Step design Rung, ladder step or stair tread? The difference lies in the tread depth. The right element for you depends entirely on how you intend to use your ladder. Rung (approx. 30 mm deep): The foot grips the rung rather than resting flat on it. Ideal for pure ascent and descent. Important for professional use: Under European occupational health and safety law, rung ladders may generally only be used as a means of access – not as a permanent workplace. Ladder step (at least 80 mm deep): The foot rests wide and securely on the non-slip step. Perfect for trade work requiring flexibility of movement. In commercial use, step ladders are the standard for safe working. Optional tread covers (e.g. clip-step, clip-step R13, clip-step relax) can increase standing comfort and safety. Stair tread (200–220 mm deep): Almost the entire foot surface makes contact – just like on a domestic staircase. This provides maximum standing comfort and fatigue-free working. Typical for folding steps or mobile work platforms. Rule of thumb when buying: The longer you work on the ladder, the wider the tread surface should be. 💡 Health & safety tip for professionals (time and height rules): When planning your work, pay attention to the standing height (the height at which your feet are positioned): Up to 2 metres standing height: No time limit in Germany, Austria or Switzerland. Between 2 and 5 metres: In Germany, max. 2 hours per shift. In Denmark, max. 30 minutes at a stretch. In the Netherlands, a daily limit of 1 hour applies regardless of height. From 5 metres: Mobile scaffolding and mobile elevated work platforms offer more standing area and freedom of movement – and are the better choice. Italy, France, Belgium, Luxembourg: The ladder is classified as a means of access. For work at height, a platform solution is recommended.	Stufen	Stufen	Stufen	Stufen	Stufen	Stufen	Stufen
Number of steps/rungs	6 steps	8 steps	10 steps	12 steps	14 steps	16 steps	18 steps
Step width	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm
Step depth	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
Step/Rung distance	235 mm	235 mm	235 mm	235 mm	235 mm	235 mm	235 mm
Vertical hook-in height	1.92 m	2.39 m	2.86 m	3.33 m	3.8 m	4.27 m	4.74 m
Ladder length	1.69 m	2.19 m	2.69 m	3.19 m	3.69 m	4.19 m	4.69 m
Base area	780 mm	950 mm	1.12 m	1.29 m	1.46 m	1.63 m	1.8 m
Inclination	70 °	70 °	70 °	70 °	70 °	70 °	70 °
Outer width	420 mm	420 mm	420 mm	420 mm	420 mm	420 mm	420 mm
Castor diameter	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
Max. load capacity	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg
Design type	Fahrbar \| Mit Rollen	Fahrbar \| Mit Rollen	Fahrbar \| Mit Rollen	Fahrbar \| Mit Rollen	Fahrbar \| Mit Rollen	Fahrbar \| Mit Rollen	Fahrbar \| Mit Rollen
Transport dimensions (plus packaging)	1860 x 600 x 110 mm, 8.38 kg	2360 x 600 x 110 mm, 9.76 kg	2860 x 600 x 110 mm, 11 kg	3360 x 600 x 110 mm, 12.28 kg	3860 x 600 x 110 mm, 13.5 kg	4360 x 600 x 110 mm, 14.72 kg	4860 x 600 x 110 mm, 16.04 kg
Business division	MUNK Günzburger Steigtechnik	MUNK Günzburger Steigtechnik	MUNK Günzburger Steigtechnik	MUNK Günzburger Steigtechnik	MUNK Günzburger Steigtechnik	MUNK Günzburger Steigtechnik	MUNK Günzburger Steigtechnik
Order no.	041406	041408	041410	041412	041414	041416	041418
Buy online from a retailer	Buy online from a retailer	Buy online from a retailer	Buy online from a retailer	Buy online from a retailer	Buy online from a retailer	Buy online from a retailer	Buy online from a retailer

Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
