Order no.: 116110

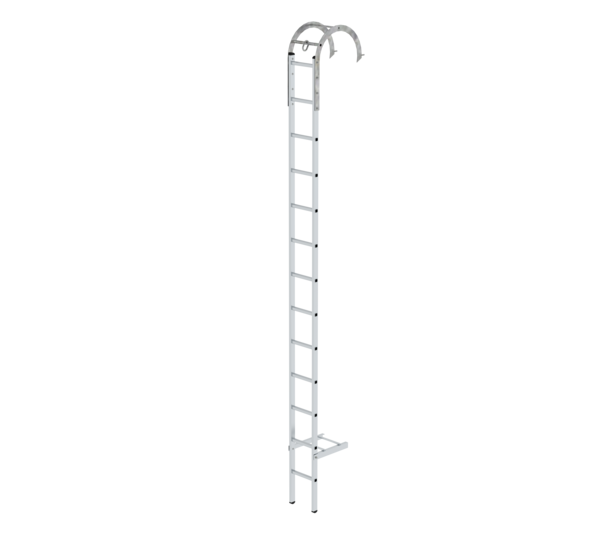

Hook ladder type A ÖNORM F 4047 and EN 1147
Price on demand
Specifications
Intended use
Access
Ladder length
4.2 m
Clear width between rungs
250 mm
Outer width
350 mm
Ladder feet
Ladder shoe
Depth of side-rails
50 mm
Width of side-rails
25 mm
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
13 rungs
Max. load capacity
150 kg
Persons max.
1
Material
Aluminium
Transport dimensions
4220 x 350 x 592 mm, 14.2 kg
Business division
MUNK Rettungstechnik
Order no.
116110
Information
- Hook ladder made of aluminium
- Access ladder compliant with ÖNORM F4047 and EN 1147
- With folding ladder support as wall spacer

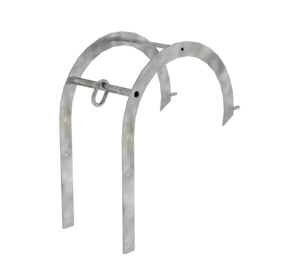

- Hooks made of galvanised steel with window insertion bolts and ring eye for holding snap hook
- 4-fold edged rung-to-side-rail connection
- Non-slip and replaceable ladder shoes
- Permissible load: 108 kg / 1 person
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
