Order no.: 020218

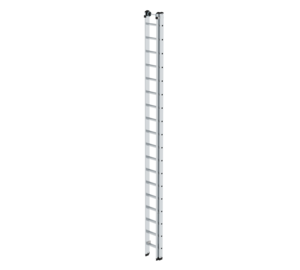

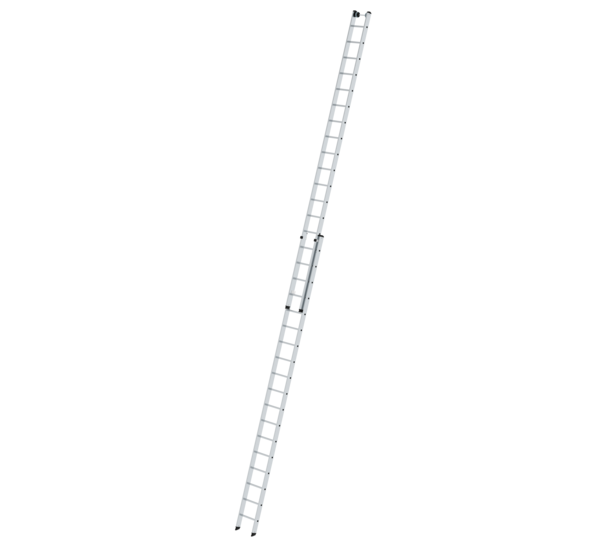

2-section rung push-up extension ladder without stabiliser
€ 872.00
RRP without VAT
Specifications
Working height
10.3 m
Step design
Rungs
Number of steps/rungs
2x
18 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Retracted length
5.3 m
Extended length
9.18 m
Outer width
420 mm
Depth of side-rails
98 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Transport dimensions (plus packaging)
5292 x 425 x 170 mm, 29 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
020218
Information
- Rung push-up extension ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Simple height adjustment from rung to rung thanks to insertion hook with automatically engaging lift-off protection
- Upper ladder from size 2x14 rungs with wall castors
- Corrosion-resistant guide fixtures
- Upper ladders up to 3.0 m with nivello® ladder shoes
- Rung distance: 280 mm
- Ladder width: 420 mm (without stabiliser)
- nivello® ladder shoes with patented 2-axis inclination technology
- Maximum load: 150 kg
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Rung push-up extension ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Simple height adjustment from rung to rung thanks to insertion hook with automatically engaging lift-off protection
- Upper ladder from size 2x14 rungs with wall castors
- Corrosion-resistant guide fixtures
- Upper ladders up to 3.0 m with nivello® ladder shoes
- Rung distance: 280 mm
- Ladder width: 420 mm (without stabiliser)
- nivello® ladder shoes with patented 2-axis inclination technology
- Maximum load: 150 kg
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table
| Product name | 2-section rung push-up extension ladder without stabiliser 2x6 rungs | 2-section rung push-up extension ladder without stabiliser 2x8 rungs | 2-section rung push-up extension ladder without stabiliser 2x10 rungs | 2-section rung push-up extension ladder without stabiliser 2x12 rungs | 2-section rung push-up extension ladder without stabiliser 2x14 rungs | 2-section rung push-up extension ladder without stabiliser 2x16 rungs | 2-section rung push-up extension ladder without stabiliser 2x18 rungs |
|---|---|---|---|---|---|---|---|
| Working height | 4.1 m | 5.2 m | 6 m | 7.2 m | 8.3 m | 9.4 m | 10.3 m |
| Step design | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x6 rungs | 2x8 rungs | 2x10 rungs | 2x12 rungs | 2x14 rungs | 2x16 rungs | 2x18 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Retracted length | 1.94 m | 2.5 m | 3 m | 3.62 m | 4.14 m | 4.74 m | 5.3 m |
| Extended length | 2.96 m | 4.08 m | 4.92 m | 6.04 m | 7.22 m | 8.34 m | 9.18 m |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Stabiliser width | - | 930 mm | 930 mm | - | - | - | - |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 85 mm | 98 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part |
| Transport dimensions (plus packaging) | 1920 x 425 x 144 mm, 8 kg | 2481 x 425 x 144 mm, 10 kg | 3040 x 425 x 144 mm, 12.5 kg | 3601 x 425 x 144 mm, 14.5 kg | 4161 x 425 x 144 mm, 18.5 kg | 4730 x 425 x 152 mm, 22 kg | 5292 x 425 x 170 mm, 29 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 020206 | 020208 | 020210 | 020212 | 020214 | 020216 | 020218 |
| Buy online | Buy online | Buy online | Buy online | Buy online | Buy online | Buy online | Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
