Order no.: 115007

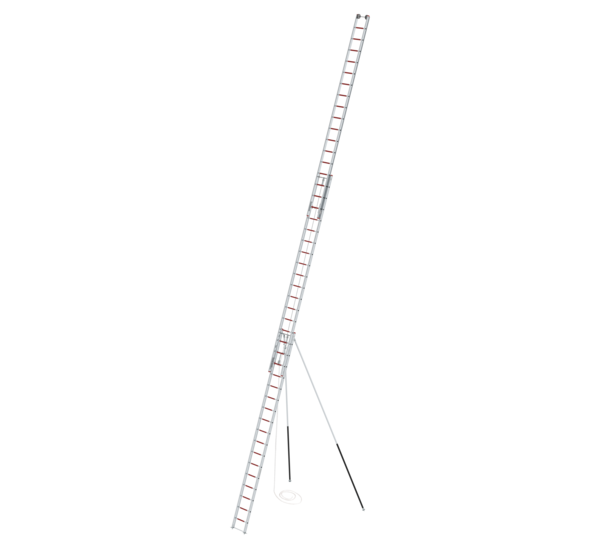

3-section rope-extension ladder DIN EN 1147
Price on demand
Specifications
Intended use
Rescue
Ladder length retracted
5.6 m
Ladder length extended
14 m
Setting angle
70 °
Clear width between rungs
270 mm
Clear width, upper ladder
350 mm
Clear width, central ladder
420 mm
Clear width, lower ladder
420 mm
Outer width
500 mm
Ladder feet
Steel point
Depth of side-rails
74
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
3x
17 rungs
Max. load capacity
324 kg
Persons max.
3
Material
Aluminium
Rung covering
Standard (red)
Transport dimensions (plus packaging)
6155 x 580 x 245 mm, 82.5 kg
Business division
MUNK Rettungstechnik
Order no.
115007
Information
- 3-section rope-extension ladder made of aluminium
- Rescue ladder compliant with DIN EN 1147
- With rope pulley, locking hook and rope brake
- With heat-insulating, non-slip plastic coating
- Supports made of aluminium tube with steel spikes and rubber jacketing
- 4-fold edged rung-to-side-rail connection
- Corrosion-resistant fixtures made of galvanised steel
- Lower ladder with steel spikes at the base
- Upper ladder with wall wheels
- Permissible load: 324 kg / 3 people
- 3-section rope-extension ladder made of aluminium
- Rescue ladder compliant with DIN EN 1147
- With rope pulley, locking hook and rope brake
- With heat-insulating, non-slip plastic coating
- Supports made of aluminium tube with steel spikes and rubber jacketing
- 4-fold edged rung-to-side-rail connection
- Corrosion-resistant fixtures made of galvanised steel
- Lower ladder with steel spikes at the base
- Upper ladder with wall wheels
- Permissible load: 324 kg / 3 people
Comparison table
| Product name | 3-section rope-extension ladder DIN EN 1147 3x10 rungs | 3-section rope-extension ladder DIN EN 1147 3x11 rungs | 3-section rope-extension ladder DIN EN 1147 3x12 rungs | 3-section rope-extension ladder DIN EN 1147 3x13 rungs | 3-section rope-extension ladder DIN EN 1147 with supports 3x14 rungs | 3-section rope-extension ladder DIN EN 1147 with supports 3x15 rungs | 3-section rope-extension ladder DIN EN 1147 with supports 3x16 rungs | 3-section rope-extension ladder DIN EN 1147 with supports 3x17 rungs |
|---|---|---|---|---|---|---|---|---|
| Intended use | Rescue | Rescue | Rescue | Rescue | Rescue | Rescue | Rescue | Rescue |
| Ladder length retracted | 3.5 m | 3.8 m | 4.1 m | 4.4 m | 4.7 m | 5 m | 5.3 m | 5.6 m |
| Ladder length extended | 7.7 m | 8.6 m | 9.5 m | 10.4 m | 11.3 m | 12.2 m | 13.1 m | 14 m |
| Setting angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Clear width between rungs | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Clear width, upper ladder | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Clear width, central ladder | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Clear width, lower ladder | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Outer width | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm |
| Ladder feet | Steel point | Steel point | Steel point | Steel point | Steel point | Steel point | Steel point | Steel point |
| Depth of side-rails | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 |
| Step/Rung height | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Step depth | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Number of steps/rungs | 3x10 rungs | 3x11 rungs | 3x12 rungs | 3x13 rungs | 3x14 rungs | 3x15 rungs | 3x16 rungs | 3x17 rungs |
| Max. load capacity | 324 kg | 324 kg | 324 kg | 324 kg | 324 kg | 324 kg | 324 kg | 324 kg |
| Persons max. | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Rung covering | Standard (red) | Standard (red) | Standard (red) | Standard (red) | Standard (red) | Standard (red) | Standard (red) | Standard (red) |
| Transport dimensions (plus packaging) | 6155 x 580 x 245 mm, 82.5 kg | - | - | - | - | - | - | - |
| Business division | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik |
| Order no. | 114067 | 114068 | 114069 | 114070 | 114071 | 114072 | 114073 | 115007 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
