Specifications
Working height
3 m
Scaffolding length
2.44 m
Scaffolding width
800 mm
Scaffolding height
1.88 m
Platform width
600 mm
Platform length
1.6 m
Load capacity
1.5 kN/m2
Max. load capacity
150 kg
Transport dimensions (plus packaging)
1710 x 805 x 238 mm, 18 kg
Transport dimensions (plus packaging) 2
350 x 305 x 260 mm, 4.56 kg
Business division
MUNK Günzburger Steigtechnik
Platform height
1 m
Information

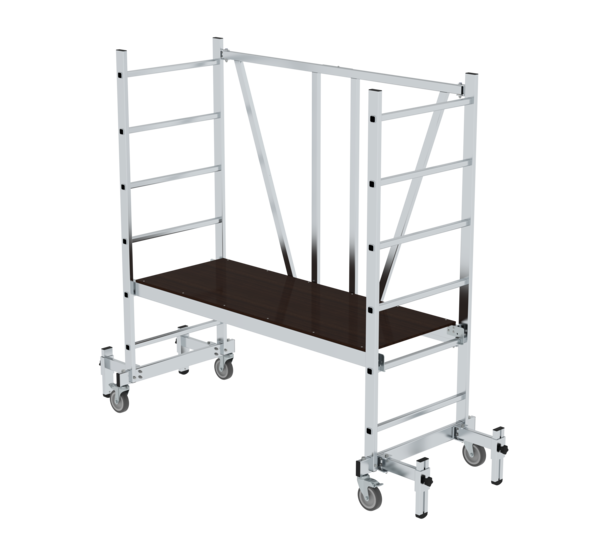

- Folding ladder scaffolding made of stable rectangular tube side-rails

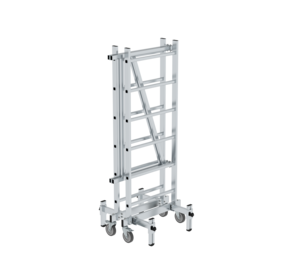

- Folding frame with self-locking hinges
- Space-saving transport and storage
- For narrow passages in assembled condition thanks to a chassis bar width of 800 mm
- Four Ø 125 mm swivel castors with locking mechanisms
- Slip-resistant platform for secure standing
- Delivered in assemblies. Once assembled, the scaffolding can be quickly set up and dismantled without tools
- Optional telescopic outriggers for even greater stability
- Maximum load: 150 kg
- Additional side boards for intermediate platforms are available as an option for country-specific requirements (e.g. Austria and France)
- Folding ladder scaffolding made of stable rectangular tube side-rails
- Folding frame with self-locking hinges
- Space-saving transport and storage
- For narrow passages in assembled condition thanks to a chassis bar width of 800 mm
- Four Ø 125 mm swivel castors with locking mechanisms
- Slip-resistant platform for secure standing
- Delivered in assemblies. Once assembled, the scaffolding can be quickly set up and dismantled without tools
- Optional telescopic outriggers for even greater stability
- Maximum load: 150 kg
- Additional side boards for intermediate platforms are available as an option for country-specific requirements (e.g. Austria and France)
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table
| Product name | ML folding scaffolding for narrow passages without telescopic outrigger | ML folding scaffolding door-accessible |
|---|---|---|
| Working height | 3 m | 3 m |
| Scaffolding length | 1.88 m | 2.44 m |
| Scaffolding width | 800 mm | 800 mm |
| Scaffolding height | 1.88 m | 1.88 m |
| Platform width | 600 mm | 600 mm |
| Platform length | 1.6 m | 1.6 m |
| Load capacity | 1.5 kN/m2 | 1.5 kN/m2 |
| Max. load capacity | 150 kg | 150 kg |
| Transport dimensions (plus packaging) | 1710 x 805 x 238 mm, 18 kg | 1710 x 805 x 238 mm, 18 kg |
| Transport dimensions (plus packaging) 2 | 350 x 305 x 260 mm, 4.56 kg | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Platform height | 1 m | 1 m |
| Buy online | Buy online | Buy online |
Product video
Note on the BG BAU work safety subsidy
Expand your scaffolding with a safety railing (SG) and ensure reliable protection at work thanks to the system-integrated side protection! The retrofit reduces the risk of falling and enables the BG BAU work safety subsidy to be paid for up to 50% of the purchase costs (max. 100 euro per measure).
✔ Suitable for this product: Compatible SG safety railings offer effective side protection and are easy to retrofit.
All members of the BG BAU profit from this subsidy. This is intended to prevent accidents at work and improve ergonomics, especially on construction sites. All information from BG BAU can be found at: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website at Knowledge.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
