Specifications
Product type
2 platforms high
Length
1.2 m
Width
800 mm
Height
1.19 m
Height up to top edge of platform
1.19 m
Max. load capacity
500 kg
Castor diameter
200 mm
Braking system
Standard
Number of levels
2
Transport dimensions (plus packaging)
1200 x 800 x 1180 mm, 81 kg
Business division
MUNK Rettungstechnik
Order no.
120003
Information

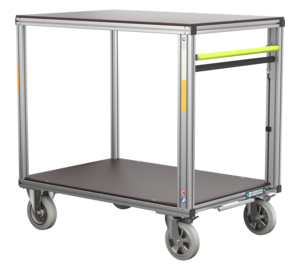

- Mobile container with "standard" undercarriage
- Two platforms made of weatherproof wooden platform board
- Universally applicable and individually expandable
- Further sizes and versions available on request
- Optionally also available with "Quadro" and
- "Quadro Light" undercarriage
- Scope of delivery without equipment items
- Series production quality equipment
- Stable and durable construction made of high-strength aluminium sections
- Platforms made of weatherproof wooden platform boards
- Ergo-Glow-Grip operation via continuous handle bar with non-slip and cold-insulating SoftGrip coating
- Robust and smooth-running actuating mechanism via flexible Bowden cable
- Two ball bearing castors Ø 200 mm with central wheel slewing arrestor for optimum handling
- Two ball bearing fixed castors Ø 200 mm with drum brake and dead man's function, resistant to dust, moisture and oil
- Foot-operated parking brake
- Mobile container with "standard" undercarriage
- Two platforms made of weatherproof wooden platform board
- Universally applicable and individually expandable
- Further sizes and versions available on request
- Optionally also available with "Quadro" and
- "Quadro Light" undercarriage
- Scope of delivery without equipment items
- Series production quality equipment
- Stable and durable construction made of high-strength aluminium sections
- Platforms made of weatherproof wooden platform boards
- Ergo-Glow-Grip operation via continuous handle bar with non-slip and cold-insulating SoftGrip coating
- Robust and smooth-running actuating mechanism via flexible Bowden cable
- Two ball bearing castors Ø 200 mm with central wheel slewing arrestor for optimum handling
- Two ball bearing fixed castors Ø 200 mm with drum brake and dead man's function, resistant to dust, moisture and oil
- Foot-operated parking brake
Scope of supply
- Mobile container: 1 x
Comparison table
| Product name | Mobile container with platform | Mobile container with 2 platforms half-high | Mobile container with 2 platforms high | Mobile container with platform and side flaps |
|---|---|---|---|---|
| Product type | Platform | 2 platforms half high | 2 platforms high | Platform and side flaps |
| Length | 1.2 m | 1.2 m | 1.2 m | 1.34 m |
| Width | 800 mm | 800 mm | 800 mm | 828 mm |
| Height | 1.19 m | 1.19 m | 1.19 m | 1.19 m |
| Height up to top edge of platform | 293 mm | 843 mm | 1.19 m | 293 mm |
| Max. load capacity | 500 kg | 500 kg | 500 kg | 700 kg |
| Castor diameter | 200 mm | 200 mm | 200 mm | 200 mm |
| Braking system | Standard | Standard | Standard | Standard |
| Number of levels | 1 | 2 | 2 | 1 |
| Transport dimensions (plus packaging) | 1200 x 800 x 1180 mm, 65 kg | 1200 x 800 x 1180 mm, 80 kg | 1200 x 800 x 1180 mm, 81 kg | - |
| Business division | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik |
| Order no. | 120001 | 120002 | 120003 | 120031 |
Mobile container standard design
- The following equipment features are included as standard with every mobile container in the "Standard" assortment
- Body made of high-strength aluminium screw channel profile
-
-
-
- Galvanised steel foot parking brake for swivel castors
-
-
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
