Specifications
Material
Galvanised steel
Profile dimension X
40 mm
Profile dimension Y
40 mm
Weight/piece
100 g
Groove size
8 mm
Dimension A
37 mm
Dimension B
40 mm
Dimension C
5 mm
Business division
MUNK Profiltechnik
Order no.
930208
Information
- Profile angle for profile 40
- Flat, space-saving angle
- For joining profiles to each other
- For assembling different components
- No machining required

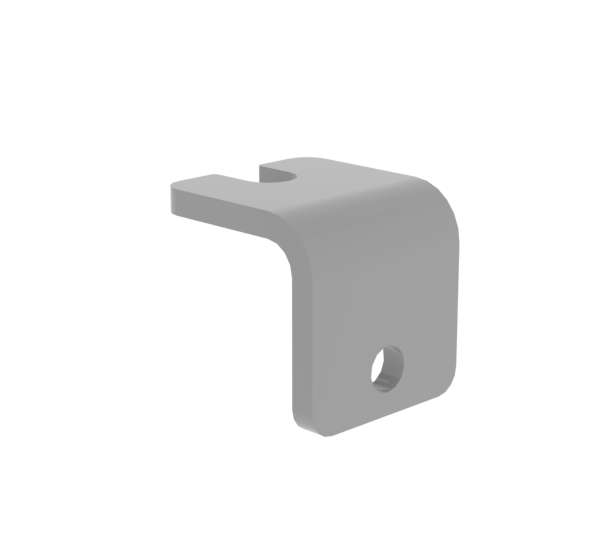

Flat mounting bracket for space-saving profile connections! The MUNK mounting bracket made of galvanised steel creates stable 90° connections – without machining and with minimal space requirements.
Space-saving & robust design
- Flat design: Only 4 mm (30×30) or 5 mm (40×40) material thickness for minimal space requirements between profiles
- Galvanised steel: corrosion protection for continuous use in industrial and outdoor applications
- Weight-optimised: 46 g (30×30) or 100 g (40×40) – lighter than die-cast corner brackets
Universally applicable without machining
Suitable for all MUNK construction profiles with 6 mm T-slots (30 mm profiles) or 8 mm T-slots (40 mm profiles). No machining required – insert the slot nuts, attach the angle bracket, screw it in place.
Versatile connection options
- Profile connections: Stable frame corners for machine frames and enclosures
- Component assembly: Fastening of panels, sheets or accessories
- Bracing: Retrofitting of existing constructions
Typical areas of application
- Machine frames: Space-saving corner connections in confined spaces
- Protective & test enclosures: Flat assembly without annoying protrusions
Assembly tables: Fastening of worktops or side components - Transport frames: Lightweight bracing for mobile constructions
Discover the MUNK mounting bracket – the slim alternative for profile connections that saves space today and can be flexibly expanded tomorrow.
- Profile angle for profile 40
- Flat, space-saving angle
- For joining profiles to each other
- For assembling different components
- No machining required
Scope of supply
- Mounting bracket: 1 x
Comparison table
| Product name | Mounting bracket 30x30 mm | Mounting bracket 40x40 mm |
|---|---|---|
| Material | Galvanised steel | Galvanised steel |
| Profile dimension X | 30 mm | 40 mm |
| Profile dimension Y | 30 mm | 40 mm |
| Weight/piece | 46 g | 100 g |
| Groove size | 6 mm | 8 mm |
| Dimension A | 27 mm | 37 mm |
| Dimension B | 34 mm | 40 mm |
| Dimension C | 4 mm | 5 mm |
| Business division | MUNK Profiltechnik | MUNK Profiltechnik |
| Order no. | 930209 | 930208 |
