Order no.: 035014

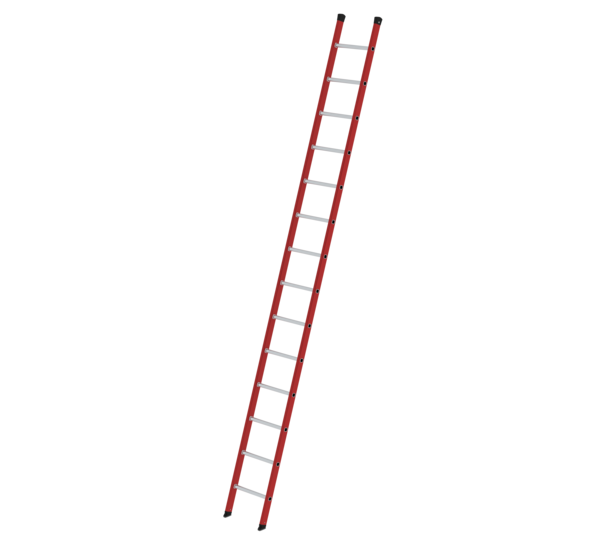

Rung straight ladder made of glass-fibre reinforced plastic / aluminium without stabiliser
€ 640.00
RRP without VAT
- 6
- 8
- 10
- 12
- 14 Current
Specifications
Working height
5.3 m
Step design
Rungs
Number of steps/rungs
14 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Ladder length
4.14 m
Outer width
420 mm
Depth of side-rails
58 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
To lean against
Transport dimensions (plus packaging)
4147 x 427 x 68 mm, 9.5 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
035014
Information
- Rung straight ladder made of reinforced fibre glass/aluminium
- Side-rails made of reinforced fibre glass profiles
- Rectangular rungs grooved on both sides 30 x 30 mm, aluminium
- 4-fold edged rung-to-side-rail connection
- Rung distance: 280 mm
- Ladder width: 420 mm (without stabiliser)
- Maximum load: 150 kg
- Suitable for working near or on live parts
- Tested up to 1,000 volts in accordance with DIN EN 61478:2002 Section 6.5.1 and A1:2004 Category 1
- nivello® ladder shoes with patented 2-axis inclination technology
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Note: Products with GFRP content are non-returnable, due to their sensitivity; the statutory warranty applies (ageing resistance 10 years)
- Rung straight ladder made of reinforced fibre glass/aluminium
- Side-rails made of reinforced fibre glass profiles
- Rectangular rungs grooved on both sides 30 x 30 mm, aluminium
- 4-fold edged rung-to-side-rail connection
- Rung distance: 280 mm
- Ladder width: 420 mm (without stabiliser)
- Maximum load: 150 kg
- Suitable for working near or on live parts
- Tested up to 1,000 volts in accordance with DIN EN 61478:2002 Section 6.5.1 and A1:2004 Category 1
- nivello® ladder shoes with patented 2-axis inclination technology
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Note: Products with GFRP content are non-returnable, due to their sensitivity; the statutory warranty applies (ageing resistance 10 years)
Scope of supply
- Ladder: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table
| Product name | Rung straight ladder made of glass-fibre reinforced plastic / aluminium without stabiliser 6 rungs | Rung straight ladder made of glass-fibre reinforced plastic / aluminium without stabiliser 8 rungs | Rung straight ladder made of glass-fibre reinforced plastic / aluminium without stabiliser 10 rungs | Rung straight ladder made of glass-fibre reinforced plastic / aluminium without stabiliser 12 rungs | Rung straight ladder made of glass-fibre reinforced plastic / aluminium without stabiliser 14 rungs |
|---|---|---|---|---|---|
| Working height | 3 m | 3.6 m | 4.1 m | 4.7 m | 5.3 m |
| Step design | Rungs | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 6 rungs | 8 rungs | 10 rungs | 12 rungs | 14 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Ladder length | 1.91 m | 2.47 m | 3 m | 3.58 m | 4.14 m |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Depth of side-rails | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | To lean against | To lean against | To lean against | To lean against | To lean against |
| Transport dimensions (plus packaging) | 1910 x 427 x 68 mm, 4.5 kg | 2468 x 427 x 68 mm, 5.5 kg | 3030 x 427 x 68 mm, 7 kg | 3588 x 427 x 68 mm, 8.5 kg | 4147 x 427 x 68 mm, 9.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 035006 | 035008 | 035010 | 035012 | 035014 |
| Buy online | Buy online | Buy online | Buy online | Buy online | Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
