Order no.: 012013

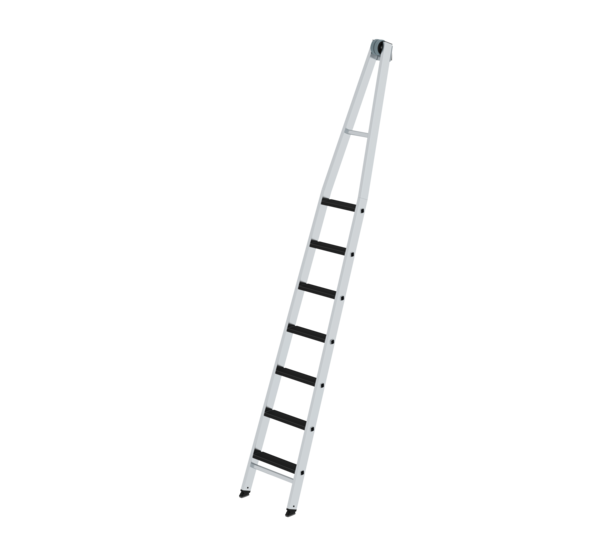

Step window cleaner’s ladder upper section with clip-step R13
€ 484.00
RRP without VAT
Specifications
Ladder length
3.02 m
Number of steps/rungs
7 steps
Step depth
80 mm
Step/Rung distance
263 mm
Upper outer width
118 mm
Lower outer width
449 mm
Inclination
70 °
Depth of side-rails
73 mm
Max. load capacity
120 kg
Design type
To lean against
BG BAU supported
Yes
Transport dimensions (plus packaging)
3033 x 450 x 136 mm, 8.31 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
012013
Information
- Step window cleaner's ladder made of aluminium
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- clip-step R13 step padding for certified non-slip protection
- 4-fold edged step-to-side-rail connection
- Secure push-fit connection with additional hook lock
- Upper ladder with castors and abrasion-resistant contact rubber pad with wedge cut-out
- Lower ladder with nivello® stabiliser for extra stability and safe ascent (enclosed separately)
- Depending on the selection, a maximum of four individual parts can be combined, as the standing height of 5.0 m must not be exceeded
- Step spacing: 263 mm
- Ladder inclination: 70°
- Maximum load: 120 kg
- Step window cleaner's ladder made of aluminium
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- clip-step R13 step padding for certified non-slip protection
- 4-fold edged step-to-side-rail connection
- Secure push-fit connection with additional hook lock
- Upper ladder with castors and abrasion-resistant contact rubber pad with wedge cut-out
- Lower ladder with nivello® stabiliser for extra stability and safe ascent (enclosed separately)
- Depending on the selection, a maximum of four individual parts can be combined, as the standing height of 5.0 m must not be exceeded
- Step spacing: 263 mm
- Ladder inclination: 70°
- Maximum load: 120 kg
Scope of supply
- Ladder upper section: 1 x
- Instructions for use and operation: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table
| Product name | Step window cleaner’s ladder upper section with clip-step R13 4 steps | Step window cleaner’s ladder upper section with clip-step R13 7 steps |
|---|---|---|
| Ladder length | 2.16 m | 3.02 m |
| Number of steps/rungs | 4 steps | 7 steps |
| Step depth | 80 mm | 80 mm |
| Step/Rung distance | 263 mm | 263 mm |
| Upper outer width | 118 mm | 118 mm |
| Lower outer width | 449 mm | 449 mm |
| Inclination | 70 ° | 70 ° |
| Depth of side-rails | 73 mm | 73 mm |
| Max. load capacity | 120 kg | 120 kg |
| Design type | To lean against | To lean against |
| BG BAU supported | Yes | Yes |
| Transport dimensions (plus packaging) | 2188 x 445 x 138 mm, 5.49 kg | 3033 x 450 x 136 mm, 8.31 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 012015 | 012013 |
| Buy online | Buy online | Buy online |
Product video
Sponsored by BG BAU
Specification subject to conditions; for the latest information please visit the BG BAU website (statutory accident insurance company for the construction and construction related services in Germany). Since 2014, the BG BAU has been promoting the purchase of platform ladders, step stools and ladder accessories with single-sided and double-sided access. All members of the BG BAU profit from this. This aims to prevent work accidents on building sites and improve ergonomic working practices. For more information by BG BAU, please visit: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website under know-how.
EuroTest Prize 2019
for outstanding achievements in occupational health and safety
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
