Show all photos
Order no.: 033319

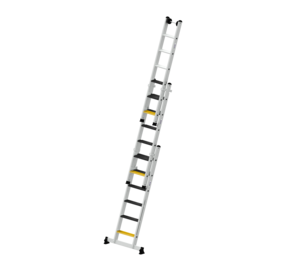

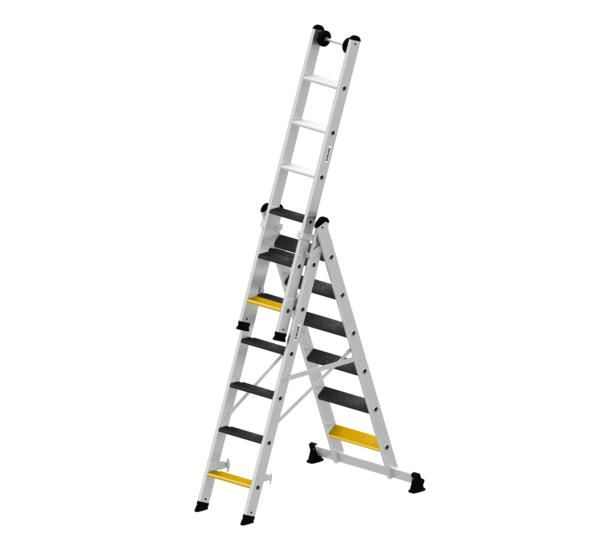

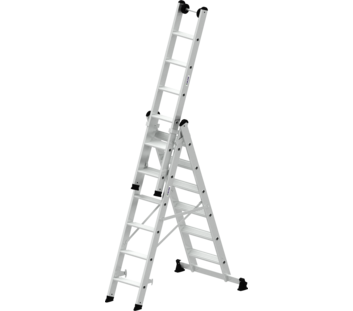

3-section multi-purpose ladder with steps with nivello® stabiliser and clip-step R13
€ 1,241.00
RRP without VAT
Specifications
Working height
5.2 m
Step design
Steps
Number of steps/rungs
3x
6 steps
Step depth
80 mm
Step/Rung distance
263 mm
Ladder length, three-part, straight
4.18 m
Ladder length, 2-part, double-sided with attachable section
3.06 m
Base spread as double ladder
1.32 m
Inclination
70 °
Retracted length
1.96 m
Outer width
490 mm
Stabiliser width
930 mm
Depth of side-rails
85 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Weight
22.46 kg
Transport dimensions
1930 x 500 x 290 mm, 22.462 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
033319
Price
€ 1,241.00
Information
- Multi-purpose ladder with steps made of aluminium
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- 4-fold edged step-to-side-rail connection
- nivello® ladder shoes and nivello® stabiliser (enclosed separately)
- Can be used as a step ladder, straight ladder and push-up extension ladder
- Simple height adjustment and secure locking thanks to insertion hook with automatically engaging lift-off protection
- Upper ladder with wall wheels
- Spreader lock with two high-strength polyester straps and detachable metal strut
- Step spacing: 263 mm
- Ladder width: 490 mm (without stabiliser)
- Ladder inclination: 70°
- Maximum load: 150 kg

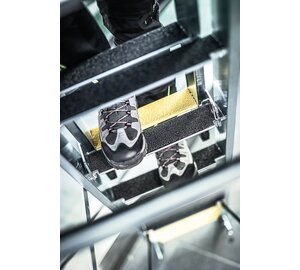

- clip-step R13 step padding for certified non-slip protection
- Lowest step on each ladder section with clip-step R13 finished in yellow
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | 3-section multi-purpose ladder with steps with nivello® stabiliser and clip-step R13 3x6 steps | 3-section multi-purpose ladder with steps with nivello® stabiliser and clip-step R13 3x7 steps | 3-section multi-purpose ladder with steps with nivello® stabiliser and clip-step R13 3x8 steps |
|---|---|---|---|
| Working height | 5.2 m | 6.1 m | 6.9 m |
| Step design | Steps | Steps | Steps |
| Number of steps/rungs | 3x6 steps | 3x7 steps | 3x8 steps |
| Step depth | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 263 mm | 263 mm | 263 mm |
| Ladder length, three-part, straight | 4.18 m | 5 m | 5.86 m |
| Ladder length, 2-part, double-sided with attachable section | 3.06 m | 3.6 m | 4.18 m |
| Base spread as double ladder | 1.32 m | 1.56 m | 1.68 m |
| Inclination | 70 ° | 70 ° | 70 ° |
| Retracted length | 1.96 m | 2.2 m | 2.5 m |
| Outer width | 490 mm | 490 mm | 490 mm |
| Stabiliser width | 930 mm | 930 mm | 930 mm |
| Depth of side-rails | 85 mm | 85 mm | 85 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Weight | 22.46 kg | 25.26 kg | 28.04 kg |
| Transport dimensions | 1930 x 500 x 290 mm, 22.462 kg | 2210 x 495 x 310 mm, 25.259 kg | 2490 x 500 x 290 mm, 28.036 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 033319 | 033322 | 033325 |
| Price | € 1,241.00 | € 1,334.00 | € 1,462.00 |
| Buy online |
Product video
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Nominated for the DEKRA Award 2021
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
