Order no.: 022414

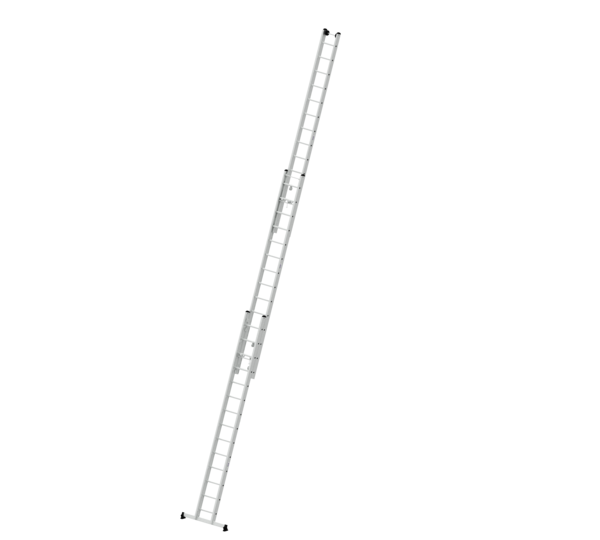

3-section rung rope-extension ladder with nivello® stabiliser
€ 2,064.00
RRP without VAT
Specifications
Working height
10.8 m
Step design
Rungs
Number of steps/rungs
3x
14 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Retracted length
4.1 m
Extended length
9.7 m
Outer width
470 mm
Stabiliser width
1.2 m
Depth of side-rails
98 mm
Width of side-rails
25 mm
Design type
To lean against | 3-part
Transport dimensions
4175 x 500 x 255 mm, 45.7 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
022414
Information
- Rung rope-extension ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Convenient height adjustment from rung to rung thanks to two pulleys with plastic cable
- Automatically acting locking hooks, middle and upper part adjusted separately
- Upper ladder with wall wheels
- Corrosion-resistant guide fixtures with sliding guides
- Rung distance: 280 mm
- Ladder width: 470 mm (without stabiliser)
- Maximum load: 150 kg
- nivello® stabiliser with optimum width for the selected product, ensuring an extra safe stance and ascent thanks to nivello® ladder shoes with 2-axis inclination technology, working angle check and exchangeable foot plates. The stabiliser is enclosed separately and is screwed to the lower end of the rail in two places
- Note: In accordance with standards, the attached push-up extension ladder section cannot be separated from the ladder with lengths over 3.0 m
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table

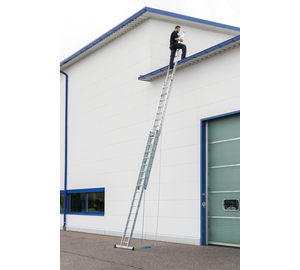

| Product name | 3-section rung rope-extension ladder with nivello® stabiliser 3x14 rungs | 3-section rung rope-extension ladder with nivello® stabiliser 3x16 rungs | 3-section rung rope-extension ladder with nivello® stabiliser 3x18 rungs |
|---|---|---|---|
| Working height | 10.8 m | 11.9 m | 13.6 m |
| Step design | Rungs | Rungs | Rungs |
| Number of steps/rungs | 3x14 rungs | 3x16 rungs | 3x18 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm |
| Retracted length | 4.1 m | 4.9 m | 5.3 m |
| Extended length | 9.7 m | 10.8 m | 12.5 m |
| Outer width | 470 mm | 470 mm | 470 mm |
| Stabiliser width | 1.2 m | 1.2 m | 1.2 m |
| Depth of side-rails | 98 mm | 98 mm | 98 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 3-part | To lean against | 3-part | To lean against | 3-part |
| Transport dimensions | 4175 x 500 x 255 mm, 45.7 kg | 4670 x 500 x 260 mm, 51.2 kg | 5370 x 500 x 252 mm, 56.2 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 022414 | 022416 | 022418 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
