Specifications
Profile type
Construction profile
Length max.
6 m
Material
Aluminium
Profile dimension X
30 mm
Profile dimension Y
60 mm
Weight per metre
1450 g/m
Groove size
6 mm
No. of grooves
6
Ix Area moment of inertia
53161 cm4
Iy Area moment of inertia
18984 cm4
Cross-sectional area FL
524.28 mm²
Surface texture
Anodised aluminium
Anodising
Bright E6/EV4
End design
Sawn
Core hole diameter
M10
Order no.
930105
Information
- Construction profile made from aluminium
- Screw channel profile with T-slot
- For sturdy, versatile constructions
- Simple installation
- Versatile use
- Added visual and functional benefits
- Bright anodised
- In different lengths up to 6000 mm

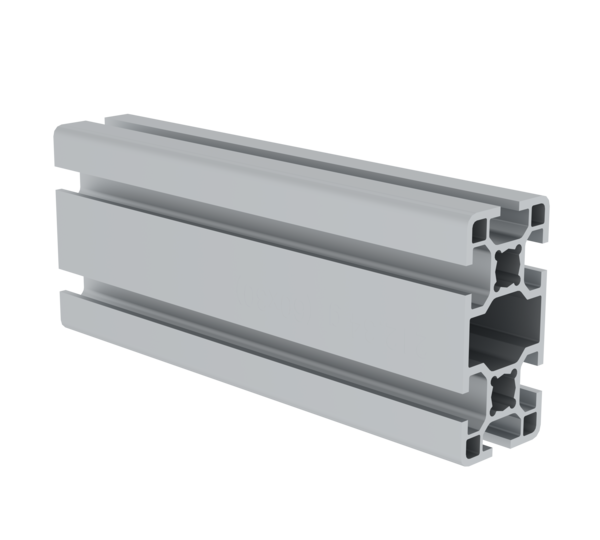

Modular precision meets double load capacity! The MUNK aluminium profile 30 × 60 mm offers six 6 mm T-slots for intelligent plug connections and, thanks to its high moment of inertia, reliably supports even demanding assemblies.
Maximum stability with a slim design
- Asymmetrical external dimensions of 30 × 60 mm create space for cables or panels and increase bending stiffness.
- Ix = 53161 cm⁴, Iy = 18984 cm⁴ – ideal for vertical frames, portals or cantilever arms.
- Only 1.450 kg/m dead weight: easy transport, lower drive loads in moving constructions.
Quick to assemble, expandable at any time
The continuous screw channels connect components with standard screws (M10 core channel) – without any welding. Components can be moved or added in seconds when layout changes are required.
Permanently protected & representative
- Lightly anodised aluminium E6/EV4 forms a wear-resistant surface and gives machine frames a high-quality appearance.
- Profiles are cut to length with millimetre precision up to 6 m and arrive ready for assembly – no waste, no reworking.
Typical areas of application
- Machine portals: Large spans thanks to high Ix stiffness in the longitudinal direction.
- Protective enclosures: Secure partitions with variable door and panel positions via six grooves.
- Linear units & axis systems: Precise guidance thanks to optimum bending stiffness.
- Ergonomic workstations: Can be retrofitted with accessories via all six connection points.
Discover the MUNK aluminium profile 30 × 60 mm – the strong basis for modular constructions that impress today and grow with you tomorrow.
- Construction profile made from aluminium
- Screw channel profile with T-slot
- For sturdy, versatile constructions
- Simple installation
- Versatile use
- Added visual and functional benefits
- Bright anodised
- In different lengths up to 6000 mm
Scope of supply
- Aluminium profiles, sawn to the required length (max. 6 m): 1 x
