Order no.: 125140

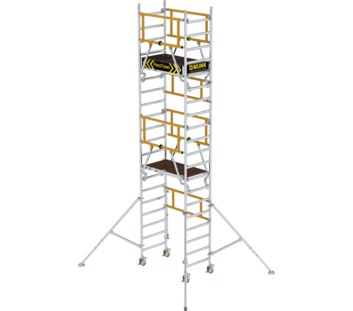

FlexxTower SG ergo
€ 3,569.00
RRP without VAT
Specifications
Working height
4.1 m
Scaffolding length
3.14 m
Scaffolding width
2.57 m
Scaffolding height
3.3 m
Platform width
600 mm
Platform length
1.2 m
Load capacity
2 kN/m2
Transport dimensions
1650 x 800 x 750 mm, 83 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
possible & allowed
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
possible & allowed
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, indoor, lateral installation
0 kg
Ballasting of scaffolding, outdoor, central installation
0 kg
Ballasting of scaffolding, outdoor, lateral installation
20 kg
Business division
MUNK Günzburger Steigtechnik
Platform height
2.1 m
Information
- Mobile scaffolding made of sturdy aluminium tubing with welded frame parts
- For lower workplaces, the scaffolding can also be assembled at lower heights
- Integrated 1.25 m Ergo platform - up to 40 % lighter, more compact and easier to handle than conventional platforms
- Secured on all sides thanks to leading railing; can be assembled and dismantled from level to level by one person (can be used by up to two people)
- Tool-free assembly thanks to push-fit connectors and quick-release connectors
- Easy to handle thanks to individual lightweight parts
- Excellent flexibility and stability, thanks to fold-out triangular outrigger with swivel base – also ideal for wall mounting or moving in narrow passages
- Four Ø 125 mm swivel castors with centric load application and spindles
- Aluminium toe boards and powder-coated railing frames with integrated knee rail as a safety railing
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 012905 - FlexxTower push-fit frame: 6 x
- 012926 - FlexxTower triangular outrigger: 4 x
- 012943 - FlexxTower toe board, long side: 2 x
- 012913 - FlexxTower toe board, front: 2 x
- 012956 - Scaffolding Parts, Accessories, Spare Parts: 2 x
- 012973 - FlexxTower swivel castor Ø 125 mm: 4 x
- 012955 - FlexxTower double railing: 1 x
- 012932 - FlexxTower Ergo platform with flap 1.25m: 1 x
Safety. Made in Germany.
Comparison table
| Product name | FlexxTower SG ergo with leading railing Platform height 2.10 m | FlexxTower SG ergo with leading railing Platform height 3.10 m | FlexxTower SG ergo with leading railing Platform height 4.10 m |
|---|---|---|---|
| Working height | 4.1 m | 5.1 m | 6.1 m |
| Scaffolding length | 3.14 m | 3.14 m | 3.14 m |
| Scaffolding width | 2.57 m | 2.57 m | 2.57 m |
| Scaffolding height | 3.3 m | 4.3 m | 5.3 m |
| Platform width | 600 mm | 600 mm | 600 mm |
| Platform length | 1.2 m | 1.2 m | 1.2 m |
| Load capacity | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 |
| Transport dimensions | 1650 x 800 x 750 mm, 83 kg | 1650 x 800 x 950 mm, 115 kg | 1650 x 800 x 1860 mm, 122.4 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, indoor, lateral installation | 0 kg | 20 kg | 50 kg |
| Ballasting of scaffolding, outdoor, central installation | 0 kg | 0 kg | 80 kg |
| Ballasting of scaffolding, outdoor, lateral installation | 20 kg | 70 kg | 120 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Platform height | 2.1 m | 3.1 m | 4.1 m |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
