Specifications
Intended use
Access
Ladder length
4.4 m
Clear width between rungs
250 mm
Outer width
300 mm
Ladder feet
Ladder shoe
Depth of side-rails
60 mm
Width of side-rails
25 mm
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
10 rungs
Step/Rung distance
335 mm
Max. load capacity
150 kg
Persons max.
1
Material
Aluminium
Rung covering
Standard (red)
Transport dimensions (plus packaging)
4400 x 300 x 120 mm, 11 kg
Business division
MUNK Rettungstechnik
Order no.
115006
Information

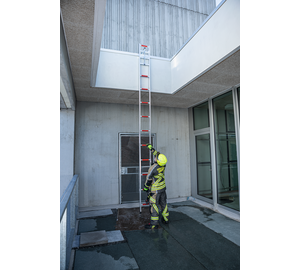

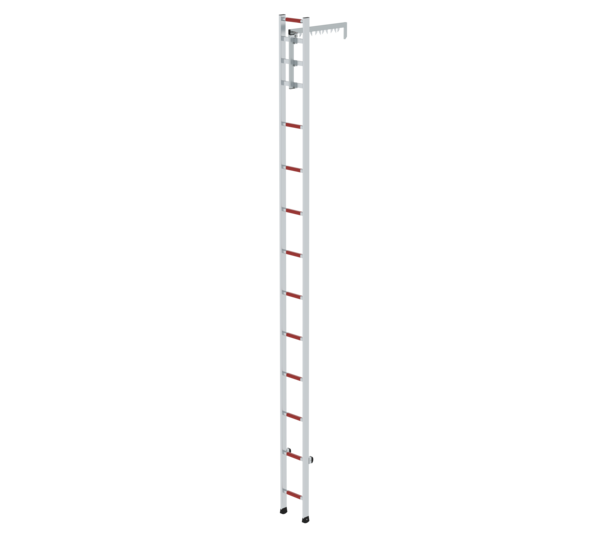

- Hook ladder made of aluminium
- Access ladder compliant with DIN EN 1147
- With heat-insulating, non-slip plastic coating
- Folding hook made of galvanised steel secured with locking pin
- Rubber feet as spacers
- 10 climbing rungs welded with side-rails, 3 hook rungs and 1 deck rung
- Corrosion-resistant fixtures made of galvanised steel
- Non-slip and replaceable ladder shoes
- Permissible load: 108 kg / 1 person
- Hook ladder made of aluminium
- Access ladder compliant with DIN EN 1147
- With heat-insulating, non-slip plastic coating
- Folding hook made of galvanised steel secured with locking pin
- Rubber feet as spacers
- 10 climbing rungs welded with side-rails, 3 hook rungs and 1 deck rung
- Corrosion-resistant fixtures made of galvanised steel
- Non-slip and replaceable ladder shoes
- Permissible load: 108 kg / 1 person
Certificates
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
