Specifications
Information
- Platform length: 5660 mm
- Overall length: 5750 mm
- Platform height: 2900 mm
- Platform width: 1250 mm
- Castors: 200 x 80 mm with directional locks
- Clear height from the lower edge of the protective cage: 3,450 mm
- Track width: 1,400 mm
- Weight: 900 kg
- Space-saving access solution for indoor use
- Simple and flexible to use
- Pair-based braking system for secure positioning
- Internal staircase for easy access
- Fold-out protective cage with a lowerable foot rail
- Rubber bumpers on the long side to protect the vehicles
- Optional mounting kit for a fixed height increase of 300 mm
- In accordance with DIN EN ISO 14122:2016 and the applicable DGUV regulations
- Load: 1.50 kN/m², total 500 kg
Client's Request and Task
The goal was a mobile access solution for bus maintenance. The platform needed to fit compactly in indoor environments, protect vehicles from damage, and bring workers safely to working height.
- Mobile use in bus maintenance
- Space-saving access solution for indoor use
- Protection of vehicles from damage
- Safe, comfortable access and egress
- Compliant with DIN EN ISO 14122:2016 and DGUV regulations
- Optional height extension for various vehicle heights
Our Solution
Design Concept

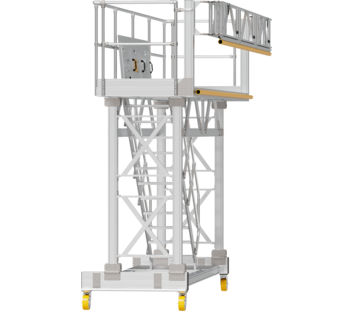

The mobile work platform with safety cage is a space-saving, mobile access solution for bus maintenance. It positions flexibly indoors and redeploys quickly between workstations.
Mobility and Positioning
Swivel castors with directional locks (Ø 200 × 80 mm) allow easy manoeuvring. The paired braking system secures the platform reliably in the working position.
Access Solution
The integrated internal stairway provides comfortable, safe access – with no additional space required on the outside.
Safety Cage and Fall Protection
The fold-out safety cage with lowerable toe board reliably protects workers from falls. The gap to the vehicle reduces to a minimum.
Vehicle Protection
Rubber buffers along the longitudinal side prevent damage to vehicle surfaces – work directly on the bus without risking the paintwork.
Accessory: Extension Kit 300 mm
Four column sections raise the platform rigidly by 300 mm – for buses with greater body height. A step and railing set secure access at the new height.
Standards Compliance and Safety
The platform fully meets DIN EN ISO 14122:2016 and the applicable DGUV regulations.
Conclusion
The mobile work platform with safety cage combines mobility, vehicle protection, and occupational safety in one compact solution. Short setup times, standards-compliant design, and optional height adjustment make it a practical solution for bus maintenance.
- Platform length: 5660 mm
- Overall length: 5750 mm
- Platform height: 2900 mm
- Platform width: 1250 mm
- Castors: 200 x 80 mm with directional locks
- Clear height from the lower edge of the protective cage: 3,450 mm
- Track width: 1,400 mm
- Weight: 900 kg
- Space-saving access solution for indoor use
- Simple and flexible to use
- Pair-based braking system for secure positioning
- Internal staircase for easy access
- Fold-out protective cage with a lowerable foot rail
- Rubber bumpers on the long side to protect the vehicles
- Optional mounting kit for a fixed height increase of 300 mm
- In accordance with DIN EN ISO 14122:2016 and the applicable DGUV regulations
- Load: 1.50 kN/m², total 500 kg
