Order no.: 077435

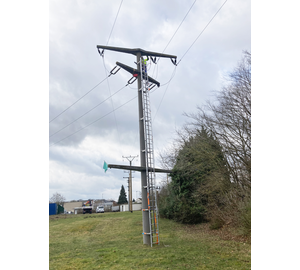

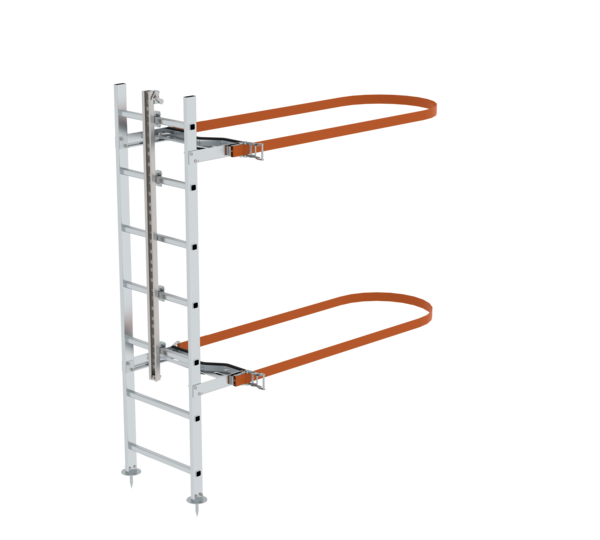

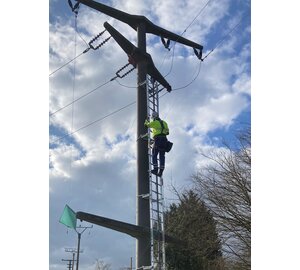

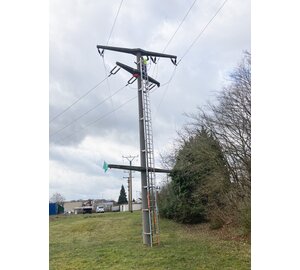

Sprouted double-barred mast ladder
€ 1,550.00
RRP without VAT
Specifications
Ladder length
1.95 m
Number of steps/rungs
7 rungs
Depth of side-rails
58 mm
Max. load capacity
150 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
077435
Information
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Rung distance: 280 mm
- Ladder width: 470 mm
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table
| Product name | Sprouted double-barred mast ladder lower part 7 rungs | Sprouted double-barred mast ladder Insert 1 7 rungs | Sprouted double-barred mast ladder Insert 2 4 rungs |
|---|---|---|---|
| Ladder length | 1.95 m | 1.68 m | 1.12 m |
| Number of steps/rungs | 7 rungs | 7 rungs | 4 rungs |
| Depth of side-rails | 58 mm | 58 mm | 58 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 077435 | 077436 | 077437 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
