Order no.: 301303
Tank truck ladder with rungs type 1
€ 16,444.00
RRP without VAT
Specifications
Version
Type 1
Total height max.
5.4 m
Total length max.
3.28 m
Total width max.
2.17 m
Platform height max.
4.3 m
Platform height min.
2.97 m
Platform length
1.08 m
Platform width
850 mm
Depth of side-rails
93 mm
Depth of side-rails, support
25 mm
Max. load capacity
150 kg
Swivel castors with locking device Ø 150 mm
4
Castors, Ø 280 mm
0
Transport dimensions
3280 x 2000 x 4300 mm, 391 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
301303
Information

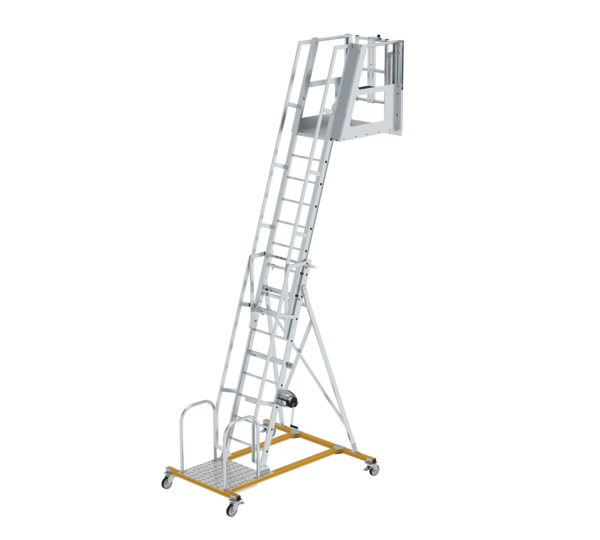

- 2-section tanker ladder made of aluminium with platform and protective cage (mandatory element, must be ordered separately)

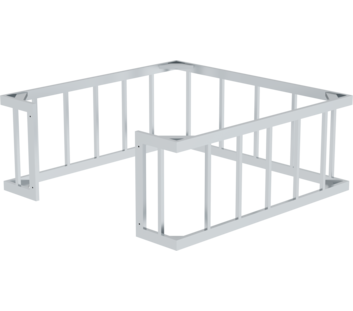

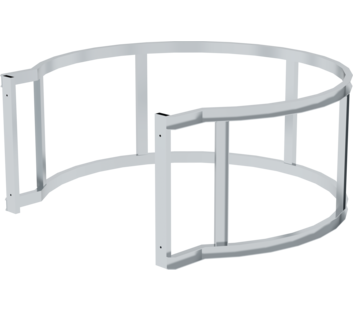

- Protective cage in three variants can be ordered separately as mandatory equipment
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm

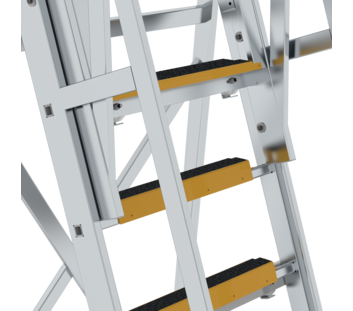

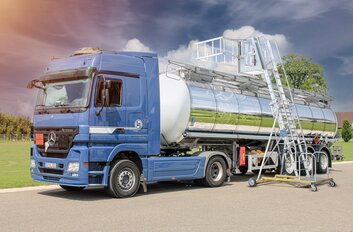

- Optional implementation with steps possible
- 4-fold edged rung-to-side-rail connection
- Guide and connecting parts in stainless steel

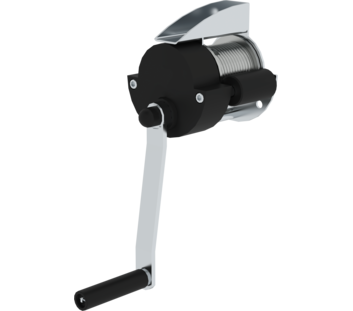

- Simple height adjustment from rung to rung thanks to cable winch and locking mechanism
- Platform with grating cover R13
- Railings with toe and knee boards on both sides

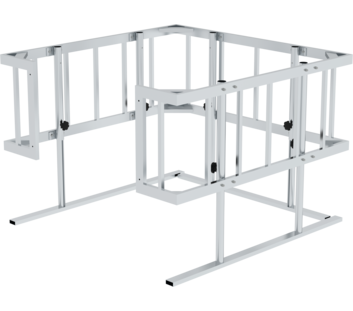

- Platform front side with 2-section safety door and protective basket (freely selectable, must be ordered separately)

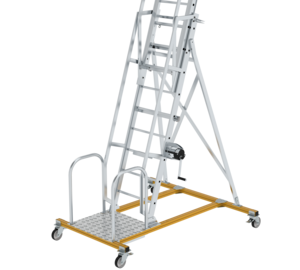

- Undercarriages partly powder-coated in RAL 1021 and available in three designs
- Rung distance: 280 mm
- Delivery time: 15 days

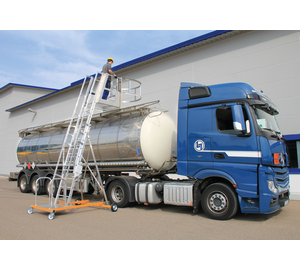

- Note: The tanker ladder is constructed solely for access when performing operation or inspection tasks during loading or unloading of the tanker
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Chassis: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table

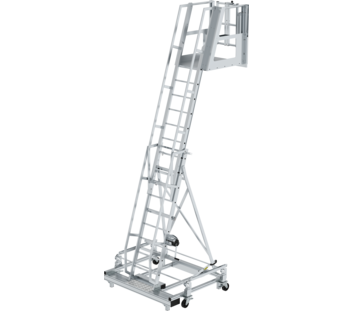

| Product name | Tank truck ladder with rungs type 1 with 4 swivel castors | Tank truck ladder with rungs type 2 with 2 swivel castors and 2 castors | Tank truck ladder with rungs type 8 With retractable central lever gear |
|---|---|---|---|
| Version | Type 1 | Type 2 | Type 8 |
| Total height max. | 5.4 m | 5.4 m | 5.37 m |
| Total length max. | 3.28 m | 3.28 m | 2.5 m |
| Total width max. | 2.17 m | 2.03 m | 2.05 m |
| Platform height max. | 4.3 m | 4.3 m | 4.3 m |
| Platform height min. | 2.97 m | 2.97 m | 2.97 m |
| Platform length | 1.08 m | 1.08 m | 1.08 m |
| Platform width | 850 mm | 850 mm | 850 mm |
| Depth of side-rails | 93 mm | 93 mm | 93 mm |
| Depth of side-rails, support | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Swivel castors with locking device Ø 150 mm | 4 | 2 | 4 |
| Castors, Ø 280 mm | 0 | 2 | 0 |
| Transport dimensions | 3280 x 2000 x 4300 mm, 391 kg | 3280 x 2034 x 5447 mm, 396 kg | 1503 x 1830 x 5375 mm, 507 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 301303 | 301304 | 301305 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
