Specifications
Top surface depth
750 mm
Top surface width
1.8 m
Step/Platform surface
Aluminium corrugated
Non-slip class
R11
Base area length
2.57 m
Base area width
1.07 m
Design type
Height adjustable
Castor diameter
125 mm
Max. load capacity
150 kg
Material
Aluminium | Stainless steel
Transport dimensions
2568 x 1069 x 521 mm, 179.7 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
331026
Information

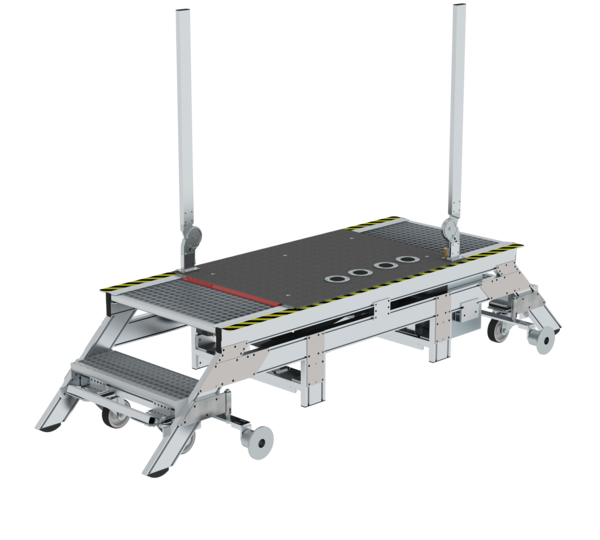

- Aluminium work platform
- Two ascents on both sides for safe and stable ascent and descent
- Hydraulically height-adjustable lifting table (521–1422 mm) operated by foot pedal directly on the track platform for flexible use
- Smooth-running roller guide with precise track guidance
- Foldable handles for a secure grip while working
- Two swivel castors (Ø 125 mm) with central foot lever for effortless manoeuvring and secure locking
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Platform: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Special constructions
From decades of experience, we know that individual requirements require special solutions. That's why we are here to help you realize your custom construction.
Get inspired by our reference products and make your unique idea a success. We look forward to supporting your project with our expertise and dedication. Contact our competent team for more information and assistance.
With MUNK Group by your side, your custom construction becomes a reality: Safety. Made in Germany.
What we offer
- On-site consultation and project planning
- Custom development according to your requirements
- Precision manufacturing
- Functional and cost-effective access solutions
- Maximum workplace safety
- Fast delivery
- Compliance with all relevant German, English, and international standards and regulations, such as BetrSichV, DGUV regulations, Machinery Directive 2006/42/EC
