Specifications
Platform height
2.8 m
Railing height
1 m
Height
3.9 m
Step width
600 mm
Total width
1.32 m
Scaffolding length
3 m
Transport dimensions (plus packaging)
3122 x 1325 x 3904 mm, 196 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
070500
Information

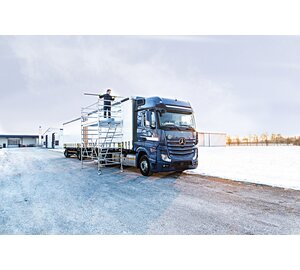

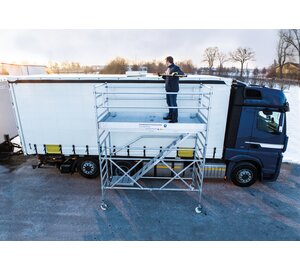

- For the safe and quick removal of ice and snow loads from trucks and commercial vehicles. Also ideal for repairs to truck tarpaulins and superstructures.

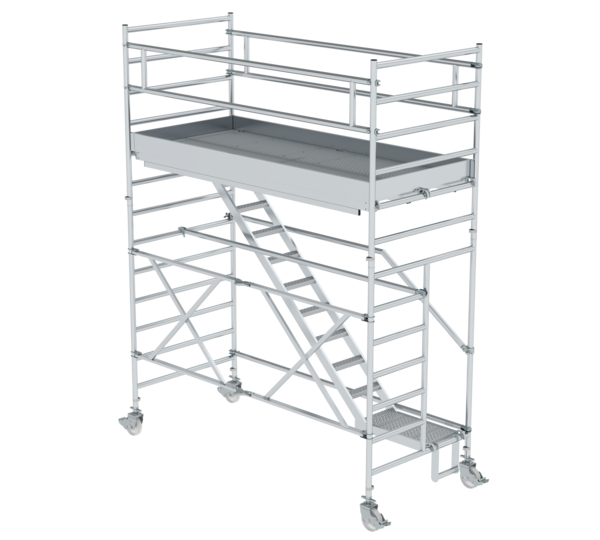

- Compact, stable aluminium scaffolding system
- Easy to move on four swivel castors and can therefore also be used in any location
- Maintenance-free, durable and weather-resistant
- Inclined ascent with handrail and 100 mm deep steps made of perforated aluminium cover (R13) plus lower step
- Non-slip platform made of aluminium grating (R13) with trapdoor. The hole pattern also prevents water pooling and the retention of dirt and snow
- 4-sided railings with foot and knee boards for a high level of safety at work
- Simple assembly without the need for tools thanks to push-fit connections and automatically closing locking claws
- Design takes into account DIN EN 1004
- Maximum load: 1.5 kN/m²
- Fast delivery (3–5 working days)
- Production in compliance with European standards DIN EN ISO 14122 and DIN EN 1004
- This product is made to order and cannot be returned
- For the safe and quick removal of ice and snow loads from trucks and commercial vehicles. Also ideal for repairs to truck tarpaulins and superstructures.
- Compact, stable aluminium scaffolding system
- Easy to move on four swivel castors and can therefore also be used in any location
- Maintenance-free, durable and weather-resistant
- Inclined ascent with handrail and 100 mm deep steps made of perforated aluminium cover (R13) plus lower step
- Non-slip platform made of aluminium grating (R13) with trapdoor. The hole pattern also prevents water pooling and the retention of dirt and snow
- 4-sided railings with foot and knee boards for a high level of safety at work
- Simple assembly without the need for tools thanks to push-fit connections and automatically closing locking claws
- Design takes into account DIN EN 1004
- Maximum load: 1.5 kN/m²
- Fast delivery (3–5 working days)
- Production in compliance with European standards DIN EN ISO 14122 and DIN EN 1004
- This product is made to order and cannot be returned
Scope of supply
- Installation material: 1 x
- Assembly instructions: 1 x
