Specifications
Rescue height
7.7 m
Working height min.
3.3 m
Working height max.
10.2 m
Intended use
Rescue
Ladder length folded
2.3 m
Ladder length folded out without extension ladder
4.56 m
Ladder length folded out with extension ladder
5.56 m
Ladder length 2 multi-function ladders with plug-on ladder
9.2 m
Ladder length 2 multi-function ladders without plug-on ladder
8.2 m
Clear width as double ladder
1.6 m
Clear height of the attachment point
2.02 m
Setting angle
70 °
Clear width between rungs
250 mm
Clear width, upper ladder
370 mm
Clear width, lower ladder
370 mm
Outer width
570 mm
Ladder feet
Ladder shoe
Depth of side-rails
85 mm
Width of side-rails
25 mm
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
2x8 Sp. 1x7 Sp.
Step/Rung distance
280 mm
Max. load capacity
216 kg
Persons max.
2
Material
Aluminium
Rung covering
Standard (red)
Transport dimensions (plus packaging)
195 x 570 x 2300 mm, 25 kg
Business division
MUNK Rettungstechnik
Order no.
115093
Information

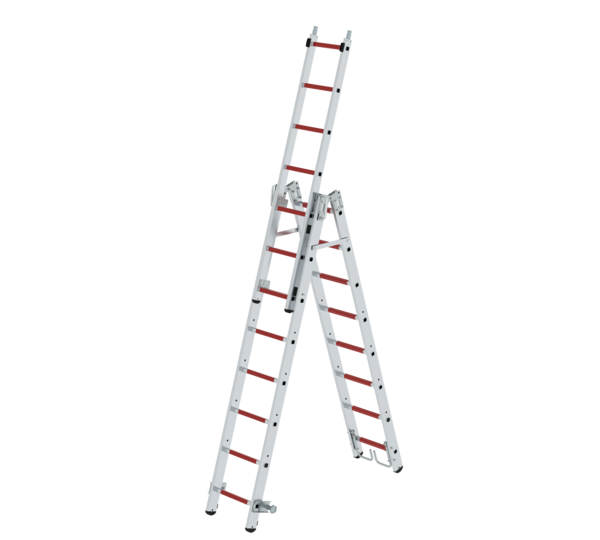

- Aluminium multi-function ladder
- Rescue ladder compliant with DIN EN 1147
- Consisting of 3 ladder sections for universal applications
- With heat-insulating, non-slip plastic coating
- Secure push-fit connections with spring-loaded bolts on the hinge joint
- 4-fold edged rung-to-side-rail connection
- Corrosion-resistant fixtures made of galvanised steel
- Non-slip and replaceable ladder shoes
- DIN mount for floodlights on the extension ladder
- Permissible load: 216 kg / 2 people
- Aluminium multi-function ladder
- Rescue ladder compliant with DIN EN 1147
- Consisting of 3 ladder sections for universal applications
- With heat-insulating, non-slip plastic coating
- Secure push-fit connections with spring-loaded bolts on the hinge joint
- 4-fold edged rung-to-side-rail connection
- Corrosion-resistant fixtures made of galvanised steel
- Non-slip and replaceable ladder shoes
- DIN mount for floodlights on the extension ladder
- Permissible load: 216 kg / 2 people
