Specifications
Working height
2.7 m
Step design
Steps
Number of steps/rungs
3 steps
Platform included as step
Yes
Platform height
690 mm
Step depth
80 mm
Step/Rung distance
235 mm
Height
1.43 m
Ladder length
1.52 m
Base spread
850 mm
Inclination
70 °
Lower outer width
570 mm
Depth of side-rails
73 mm
Depth of side-rails, support
58 mm
Max. load capacity
150 kg
Design type
Freestanding | Single-sided access
Transport dimensions
1515 x 572 x 280 mm, 9.5 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
052083
Information

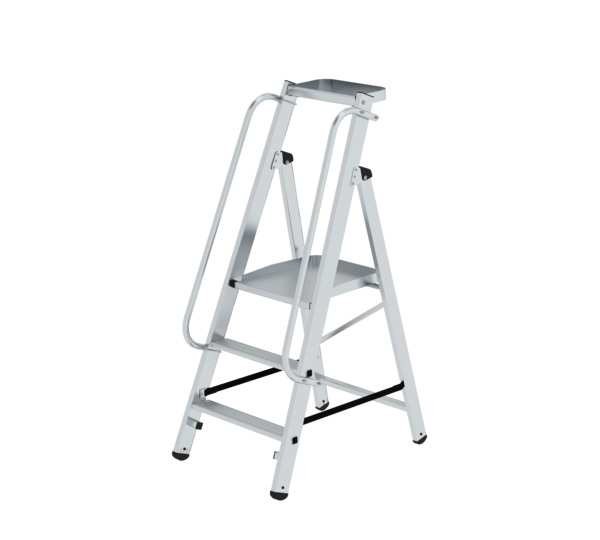

- Platform ladder made of aluminium
- Grooved steps with a depth of 80 mm
- 4-fold edged step-to-side-rail connection
- Large, trapeze-shaped platform (400 / 360 x 425 mm)
- Flexible means of extension thanks to optional push-fit sections
- 'safe-cap' ladder joint
- Practical storage tray (350 x 200 mm)
- Spreader lock with two high-strength polyester straps
- Two handrails for safe ascent and descent (enclosed separately)
- Coloured coating of the beams for easy pairing identification
- Space-saving transport and storage
- Can optionally be equipped with clip-step step padding, clip-step R13 and clip-step relax
- Step spacing: 235 mm
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Handrail (enclosed separately): 2 x
- Instructions for use and operation: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table
| Product name | Platform ladder (push-fit) | Platform ladder (push-fit) with folding handles | Platform ladder (push-fit) compact |
|---|---|---|---|
| Working height | 2.7 m | 2.7 m | 2.45 m |
| Step design | Steps | Steps | Steps |
| Number of steps/rungs | 3 steps | 3 steps | 2 steps |
| Platform included as step | Yes | Yes | Yes |
| Platform height | 690 mm | 690 mm | 450 mm |
| Step depth | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm |
| Height | 1.43 m | 1.85 m | 1.2 m |
| Ladder length | 1.52 m | 2.1 m | 1.27 m |
| Base spread | 850 mm | 850 mm | 713 mm |
| Inclination | 70 ° | 70 ° | 70 ° |
| Lower outer width | 570 mm | 570 mm | 570 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm |
| Depth of side-rails, support | 58 mm | 58 mm | 58 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access |
| Transport dimensions | 1515 x 572 x 280 mm, 9.5 kg | 1550 x 580 x 350 mm, 12 kg | 1267 x 575 x 280 mm, 8.57 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 052083 | 052086 | 052087 |
| Buy online |
Sponsored by BG BAU
Specification subject to conditions; for the latest information please visit the BG BAU website (statutory accident insurance company for the construction and construction related services in Germany). Since 2014, the BG BAU has been promoting the purchase of platform ladders, step stools and ladder accessories with single-sided and double-sided access. All members of the BG BAU profit from this. This aims to prevent work accidents on building sites and improve ergonomic working practices. For more information by BG BAU, please visit: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website under know-how.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
