Show all photos
Specifications
Working height
2.45 m
Step design
Steps
Number of steps/rungs
2 steps
Platform included as step
Yes
Platform height
450 mm
Step depth
80 mm
Step/Rung distance
235 mm
Height
1.2 m
Ladder length
1.27 m
Base spread
713 mm
Inclination
70 °
Lower outer width
570 mm
Depth of side-rails
73 mm
Depth of side-rails, support
58 mm
Max. load capacity
150 kg
Design type
Freestanding | Single-sided access
Transport dimensions (plus packaging)
1267 x 575 x 280 mm, 8.57 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
052087
Information

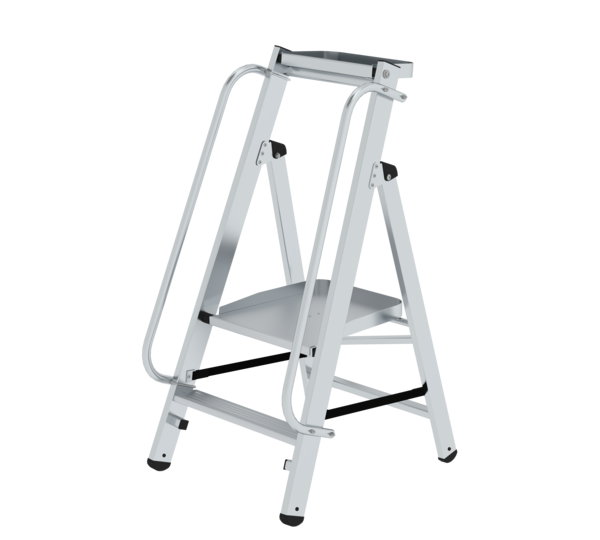

- Platform ladder made of aluminium
- Grooved steps with a depth of 80 mm
- 4-fold edged step-to-side-rail connection
- Large, trapeze-shaped platform (400 / 360 x 425 mm)
- Flexible means of extension thanks to optional push-fit sections
- 'safe-cap' ladder joint
- Practical storage tray (350 x 200 mm)
- Spreader lock with two high-strength polyester straps
- Two handrails for safe ascent and descent (enclosed separately)
- Coloured coating of the beams for easy pairing identification
- Space-saving transport and storage
- Can optionally be equipped with clip-step step padding, clip-step R13 and clip-step relax
- Step spacing: 235 mm
- Maximum load: 150 kg
- Platform ladder made of aluminium
- Grooved steps with a depth of 80 mm
- 4-fold edged step-to-side-rail connection
- Large, trapeze-shaped platform (400 / 360 x 425 mm)
- Flexible means of extension thanks to optional push-fit sections
- 'safe-cap' ladder joint
- Practical storage tray (350 x 200 mm)
- Spreader lock with two high-strength polyester straps
- Two handrails for safe ascent and descent (enclosed separately)
- Coloured coating of the beams for easy pairing identification
- Space-saving transport and storage
- Can optionally be equipped with clip-step step padding, clip-step R13 and clip-step relax
- Step spacing: 235 mm
- Maximum load: 150 kg
Scope of supply
- Ladder: 1 x
- Handrail (enclosed separately): 2 x
- Instructions for use and operation: 1 x
Best Brand of the Year 2025 – Plus X Award
- MUNK is the only company in the access equipment industry to receive this award.
- The jury's reasoning: MUNK stands for safety, innovation and responsibility in the field of access equipment like no other brand. With excellent product quality, a strong customer focus and sustainable practices, MUNK has been setting standards for years.
Safety. Made in Germany.
Comparison table
| Product name | Platform ladder (push-fit) | Platform ladder (push-fit) with folding handles | Platform ladder (push-fit) compact |
|---|---|---|---|
| Working height | 2.7 m | 2.7 m | 2.45 m |
| Step design | Steps | Steps | Steps |
| Number of steps/rungs | 3 steps | 3 steps | 2 steps |
| Platform included as step | Yes | Yes | Yes |
| Platform height | 690 mm | 690 mm | 450 mm |
| Step depth | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm |
| Height | 1.43 m | 1.85 m | 1.2 m |
| Ladder length | 1.52 m | 2.1 m | 1.27 m |
| Base spread | 850 mm | 850 mm | 713 mm |
| Inclination | 70 ° | 70 ° | 70 ° |
| Lower outer width | 570 mm | 570 mm | 570 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm |
| Depth of side-rails, support | 58 mm | 58 mm | 58 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access |
| Transport dimensions (plus packaging) | 1515 x 572 x 280 mm, 9.5 kg | 1550 x 580 x 350 mm, 12 kg | 1267 x 575 x 280 mm, 8.57 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 052083 | 052086 | 052087 |
| Buy online | Buy online | Buy online | Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
